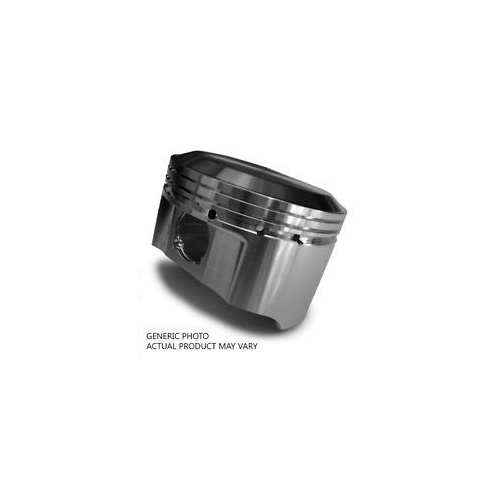

Forged Piston Set 86.5mm Bore, 73.7mm Stroke, 121.5mm Rod Length, 15.3cc Dome Volume (J209849)

SKU: J209849

Forged Piston Set 86.5mm Bore, 73.7mm Stroke, 121.5mm Rod Length, 15.3cc Dome Volume (J209849)

$1,935.00

or 4 payments of $483.75 with Info

Calculate Shipping

Description

This piston set is forged from 2618 T6 high tensile strength aluminium and features smooth flowing radii for excellent flame travel. Deburring or preparation not required.

Includes:

  • .827 x 2.250 straight wall carbon steel wrist pin
  • 1.2x1.5x3.0mm rings
  • Pin fitting
  • Wire locks

Specifications:

  • Part #: J209849
  • Bore: 86.5mm
  • Oversize: 0.5mm
  • Stroke: 73.7mm
  • Rod Length: 121.5mm
  • Compression Height: 30.1mm
  • Chamber Volume: 70.0cc
  • Compression Ratio with .050" Head Gasket: 8.2:1
  • Dome Volume: 15.3cc
  • Gram Weight: 355
  • Footnote: Accepts Turbo and Nitrous
  • Skirt: Full Round Skirt
  • Included Ring Set: JC2106-3406

Specifications

SKU J209849
Brand JE Pistons
