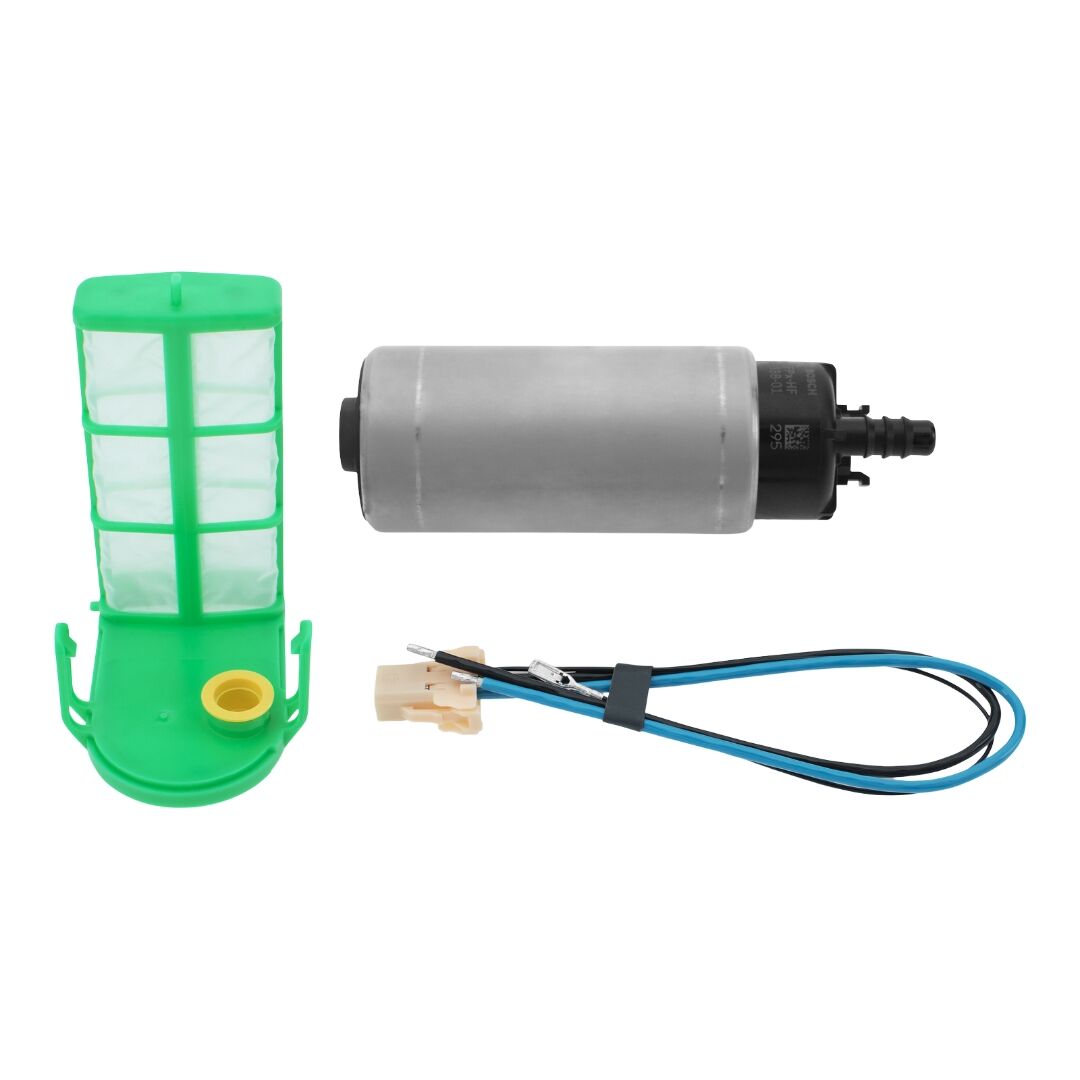

Bosch BR540 In-tank Fuel Pump 540LPH

Constantly evolving technologies and state-of-the-art manufacturing over the past 35 years allow Bosch to supply fuel pumps with tight tolerances and compact design, making way for the latest advancements. The Bosch BR540 is a high-performance, in-tank fuel pump designed for motorsport and high-output street applications. With its exceptional flow rates and compatibility with various fuels, including E85, it's ideal for vehicles requiring substantial fuel delivery.

Compact Size

TheBR540 is a compact in-tank pump, measuring only 141mm in overall length with a body diameter of 46mm. This makes the high-flowing unit suitable for most standard replacement in-tank installations, as well as fitting into existing surge tanks on the mark. For the truly performance focused, theBR540 weighs in at only 540g, making it one of the lightest pumps on the market.

Improved Reliability

As a global OEM parts manufacturer, Bosch is no stranger to developing and manufacturing reliable parts, but theBR540 goes further. The pump design is based around a carbon commutator, which decreases temperature transfer and increases brush life. This means the pump will perform better for longer, without a degradation in output as the pump ages. The pump also features a new designed, high-flow filter which protects it from any debris in the fuel tank.

Ethanol Safe

The sweet jungle juice we love and know as E85 has been a Godsend for high powered street cars, but this high-horsepower suitability comes at a price. The highly corrosive nature of ethanol can wreak havoc on older fuel systems, known to eat rubber hoses and seals, dislodge rust and cause blockages in filters and injectors. TheBR540 has been designed from the beginning to be completely ethanol-safe, with thousands of hours of testing behind it.

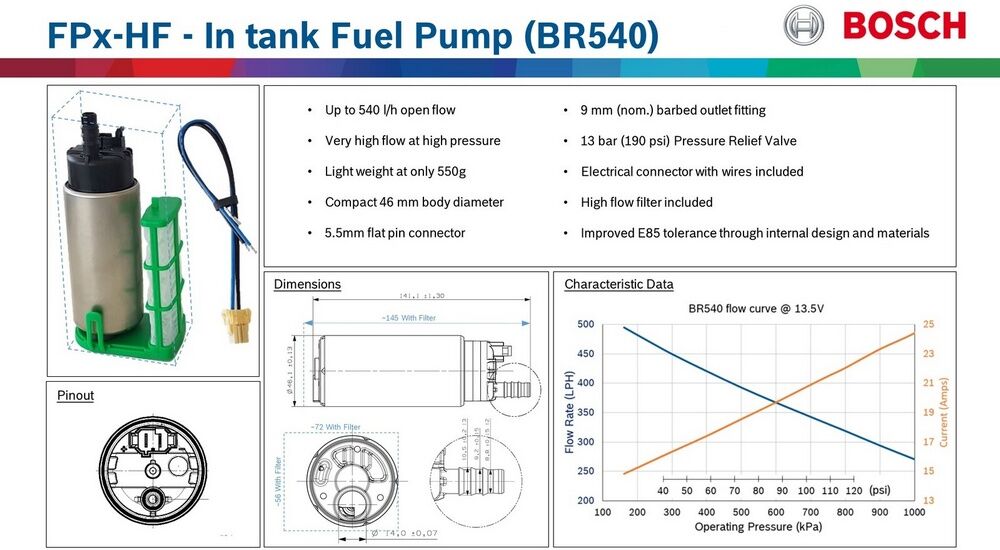

Flow Rates

• Up to 540 LPH (143 GPH) open flow
• 460 LPH (121 GPH) @ 40 PSI (2.75 Bar)
• 380 LPH (100 GPH) @ 80 PSI (5.5 Bar)
• 270 LPH (71 GPH) @ 145 PSI (10.0 Bar)
• Maximum Pressure: Up to 190 PSI (13.0 Bar)

Current Draw

• ~16A @ 40 PSI
• ~19A @ 80 PSI
• ~24A @ 145 PSI

Bosch Performance

Bosch Performance brings Bosch engineering and OE expertise to high-performance and motorsport applications. The range includes fuel injectors, sensors, pumps and engine-management components designed for demanding performance builds, competition vehicles and specialist applications.
