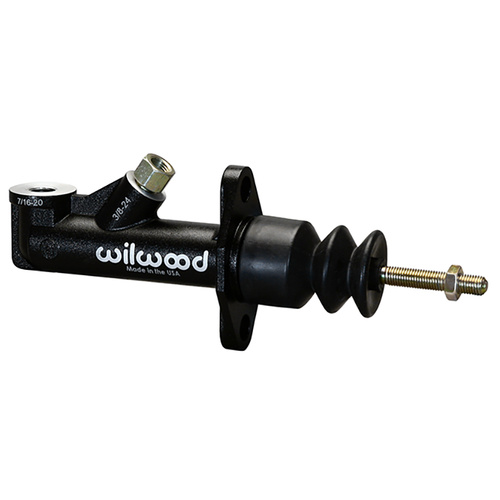

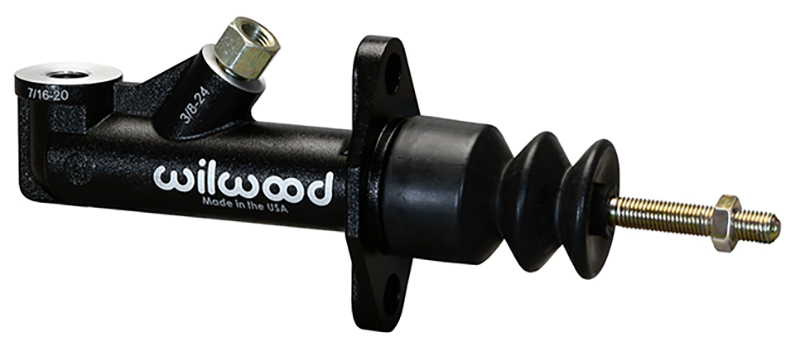

GS Compact Remote Style Master Cylinder (WB260-15089)

5/8" Bore, Aluminium Black E-Coat Finish

Wilwoods new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminium body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet.

• Newly tooled high pressure die-cast aluminum bodies with protective e-coat finish
• Newly designed internal piston and return spring assembly assures a quick and positive release with extended service life
• Fully rebuildable design
• All twist-on caps used on the integral reservoir models include positive seal bellows gaskets
• Remote reservoir models use 7/16-20 male union inlet fittings with aluminum sealing washers
• High displacement capacity with full 1.25" stroke in all models
• Use for brake or clutch
• Direct mounting to Wilwood and all similar brand pedals using 2.25" bolt hole center mounting flanges
• Optional remote fill kits with choice of 4oz or 10oz capacity include the reservoir, filter, mounting bracket, rubber hose, clamps and fittings
