SKU: 5M8309H-.025

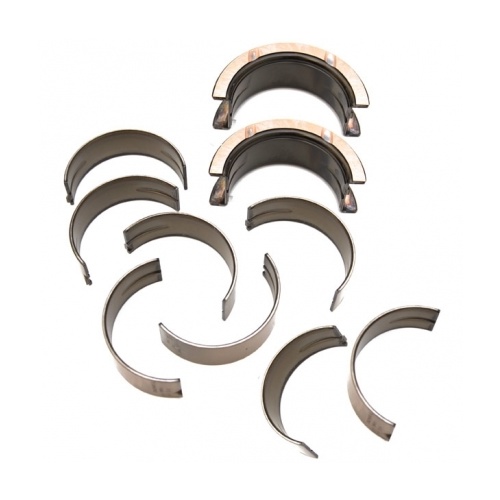

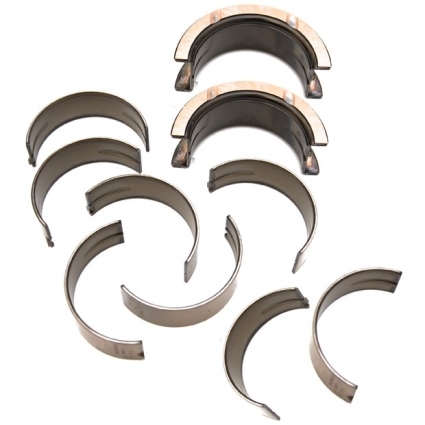

ACL Main Bearing Set (5M8309H-.025)
$139.00
or 4 payments of $34.75 with
Info
Description
| Thrust In #5 Position | |
| Material | Race Series (Tri-Metal) |
|---|---|
| * | |
| Position | 1,3 |
| Std Shaft Diam | 2.3616"/2.3622" (59.984mm/60.000mm) |
| Oil Clearance | TBA |
| Maximum Wall | 0.0789" (2.005mm) |
| Housing Bore | 2.5197"/2.5205" (64.000mm/64.020mm) |
| Max Length | 0.7480" (19.000mm) |
| * | |
| Position | 2,4 |
| Std Shaft Diam | 2.3616"/2.3622" (59.984mm/60.000mm) |
| Oil Clearance | TBA |
| Maximum Wall | 0.0789" (2.005mm) |
| Housing Bore | 2.5197"/2.5205" (64.000mm/64.020mm) |
| Max Length | 0.5950" (15.120mm) |
| * | |
| Position | 5 |
| Std Shaft Diam | 2.3616"/2.3622" (59.984mm/60.000mm) |
| Oil Clearance | TBA |
| Maximum Wall | 0.0789" (2.005mm) |
| Housing Bore | 2.5197"/2.5205" (64.000mm/64.020mm) |
| Max Length | 0.9020" (22.920mm) |
Specifications
| SKU | 5M8309H-.025 |
| Brand | ACL Bearings |
