SKU: 5M8309H-STD

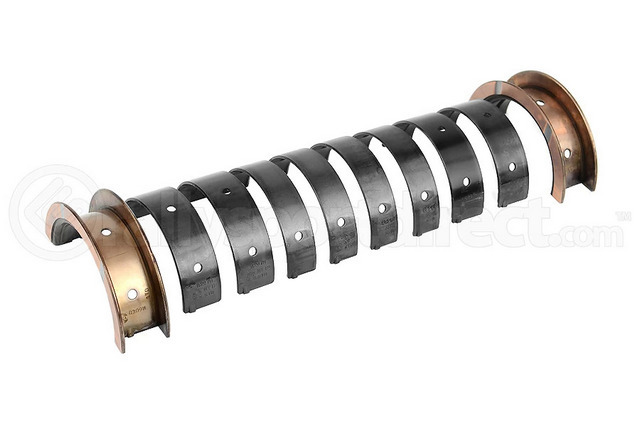

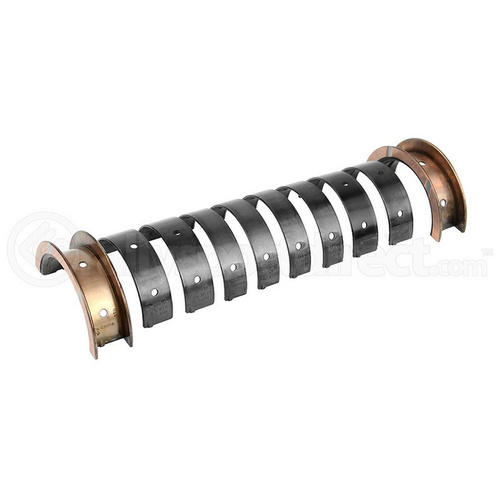

ACL Main Bearing Set (5M8309H-STD)

$120.00

or 4 payments of $30.00 with Info

In Stock


Calculate Shipping

Description

Thrust In #5 Position
Material Race Series (Tri-Metal)
*
Position 1,3
Std Shaft Diam 2.3616"/2.3622" (59.984mm/60.000mm)
Oil Clearance TBA
Maximum Wall 0.0789" (2.005mm)
Housing Bore 2.5197"/2.5205" (64.000mm/64.020mm)
Max Length 0.7480" (19.000mm)
*
Position 2,4
Std Shaft Diam 2.3616"/2.3622" (59.984mm/60.000mm)
Oil Clearance TBA
Maximum Wall 0.0789" (2.005mm)
Housing Bore 2.5197"/2.5205" (64.000mm/64.020mm)
Max Length 0.5950" (15.120mm)
*
Position 5
Std Shaft Diam 2.3616"/2.3622" (59.984mm/60.000mm)
Oil Clearance TBA
Maximum Wall 0.0789" (2.005mm)
Housing Bore 2.5197"/2.5205" (64.000mm/64.020mm)
Max Length 0.9020" (22.920mm)

Specifications

SKU 5M8309H-STD
Brand ACL Bearings
