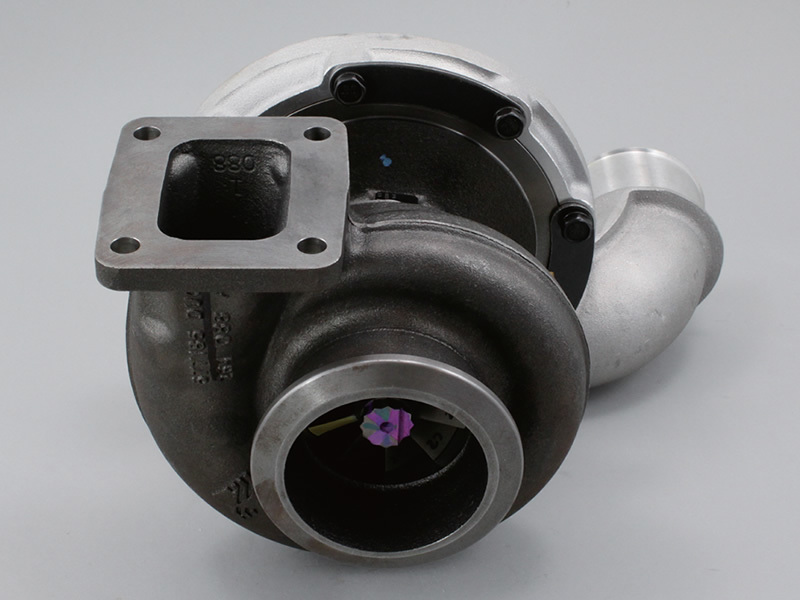

Borg Warner Turbocharger S300SX3 ( S366  )

S300SX3 AKA S366,

0.91a/r T04 Dual Entry

• Bearing Type: Journal Bearing.
• Cooling System: Oil Cooled Only.

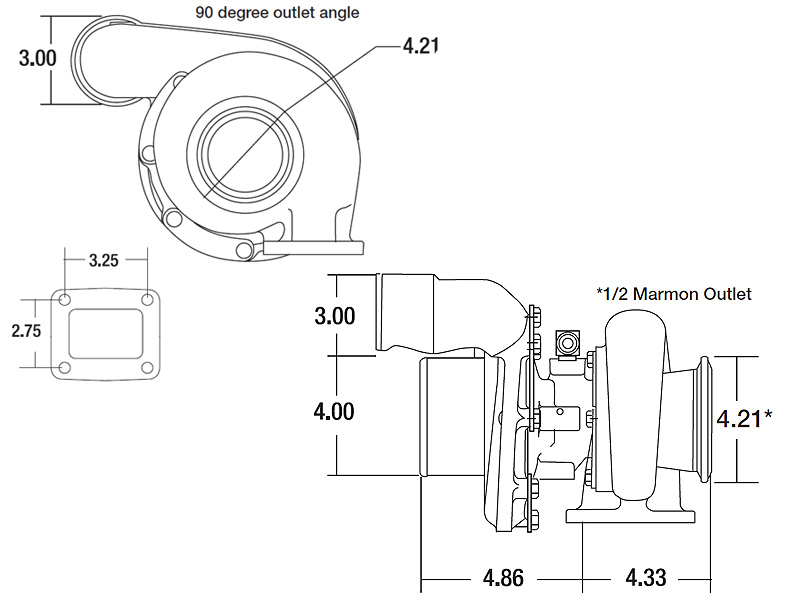

• Standard Turbine Housing: Externally Wastegated, 0.91a/r T04 Dual Entry.
• Turbine Housing Options: Externally Wastegated, 0.88a/r T04 Single Entry & 1.00a/r T04 Dual Entry.
• Base Flange: T04 Dual or Single Entry depending on Turbine Housing choice.
• Exhaust Outlet Flange: 4.0" V-Band.
• Horsepower: 320-800hp.

Product Notes:

• There may be a minor delay in supply on some turbine housing options.
• Turbine Outlet V-Band Clamp and V-Band Flange is sold separately (please see related items below).

Turbo Features:

• Twin hydrodynamic journal bearings

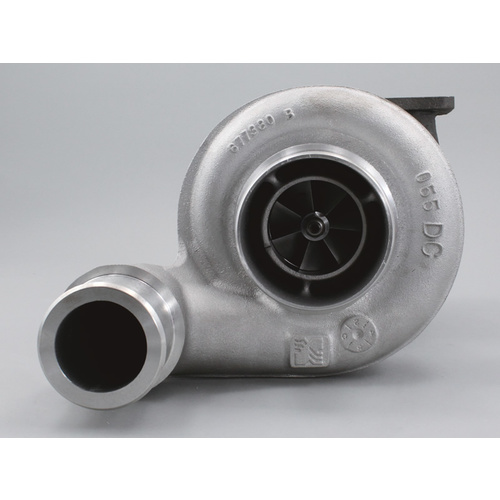

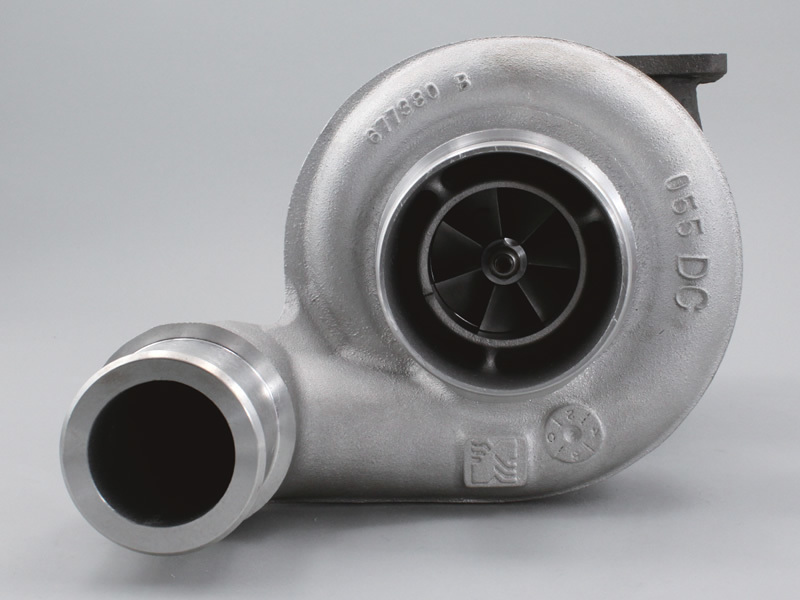

• Extended Tip Technology compressor wheel - Select BorgWarner turbochargers employ BorgWarner "S" generation compressor wheels that incorporate extended tip technology. The compressor wheel design feature promotes greater airflow using a low inertia wheel that performs like a wheel of greater size and mass. Extended tip technology enables the user to have faster spool-up at lower engine speeds, while providing the boost for the powerful top-end performance that most turbocharger enthusiasts have come to desire.
• Adjustable compressor and turbine housing orientation.
• Ported shroud/surge slotted compressor housing to increase surge resistance.
