Digital Thermatic Fan Switch - Use with electric thermo fans & Electric Water Pumps

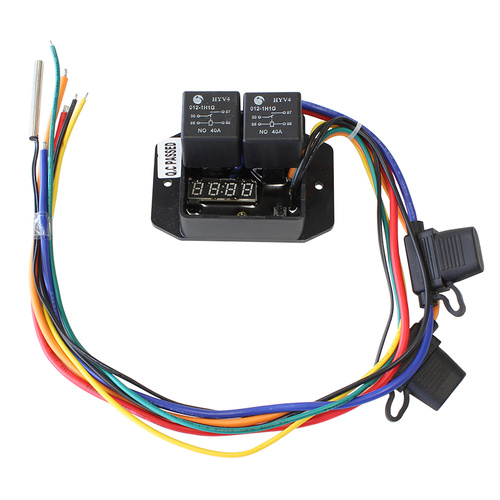

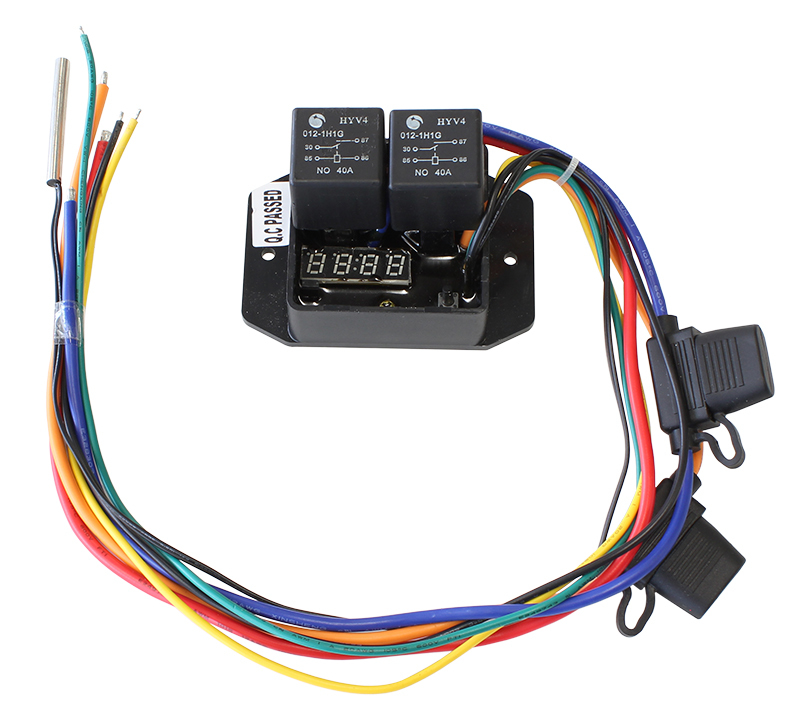

Digital Thermatic Fan Switch
Use with electric thermo fans & Electric Water Pumps

Davies, Craig Pty Ltd very own designed Digital Thermatic Fan Switch Kit can be used with our Thermatic Fans, EWP's & competitors Fans.

It senses air temperature as it passes through the radiator and has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF).

The Temperature Sensor is placed in the radiator fin section as close to the hot coolant inlet as possible, no need to cut hoses.

This switch is operated thermally & also when the air conditioning is in operation.

Simply set the temperature by pressing the set button.

It can run 1 or two fans. The second fan (if applicable) will start 10 seconds after Fan #1 runs.

The fans will operate until the air temperature is reduced by 1 degrees (C) from the set temperature.

To convert temperature reading from Centigrade to Fahrenheit, simply remove the plastic cover from the Jumper Pins by hand located below the LED screen.

SPECIFICATION

• Max voltage: 15V
• Max current: 50A
• Relay setup: Dual relay
• Speed: Single speed - 10 sec. delay to start up the second fan
• Applications: Suitable for single and dual fan applications
• Temperature Display: LED digital temp display – actual temp + set temp
• Temp Display: Centigrade+ Fahrenheit
• Temp settings: 40°c to 110°c (104°F to 230°F)
• Temp setting: Push Button
• Circuit type: Pre-programmed micro controller
• Output wires: Batt + Batt - IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe
• Dimensions: 95x65x56 mm
