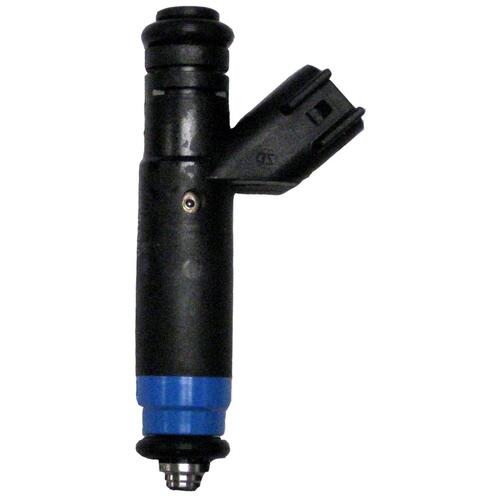

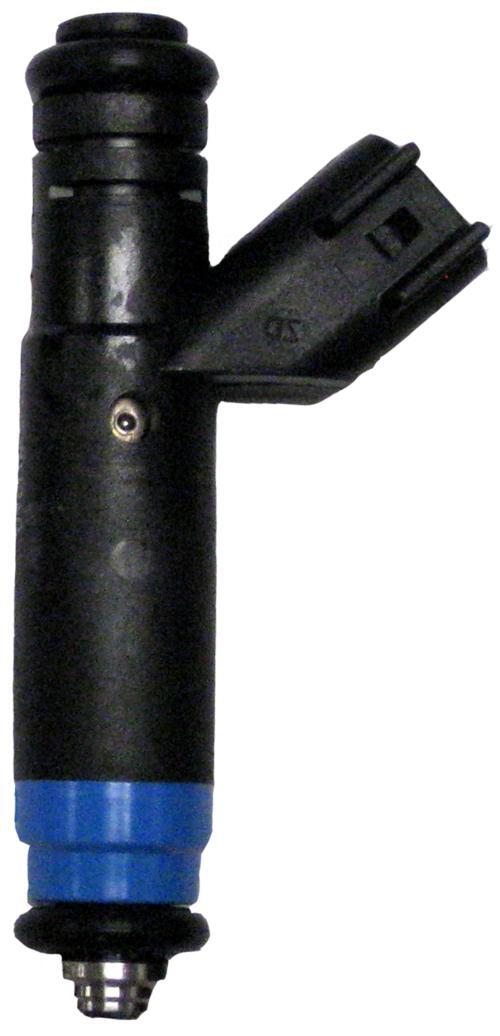

FORD PERFORMANCE 80 LB/HR FUEL INJECTOR SET M-9593-LU80 (Pack of 8 Injectors)

FORD PERFORMANCE 80 LB/HR FUEL INJECTOR SET M-9593-LU80 (Pack of 8 Injectors)



• 80 lb/hr, single-hole, high-impedance fuel injector with USCAR electrical connector
• USA Made
• Single cone spray pattern
• Original equipment on supercharged FR500CJ Cobra Jet



About electrical connectors:

• The USCAR connector is sometimes referred to as EV6, which is a Bosch term for the generation of injector.
• Jetronic is the older style connector, sometimes referred to by the Bosch generation EV1.
• Neither EV1 or EV6 is technically correct because those generations of Bosch injectors could come with either connector. However most EV1's commonly seen use the Jetronic connector and most EV6's use the USCAR connector so it's easy to see the connection.



Fuel Injector Chart:

PART NUMBER (SETS OF 8)	FLOW RATE	IMPEDANCE	LENGTH	CONNECTOR	ADAPTER	COLOR
M-9593-LU24A	24 lbs/hr.	11-18 ohms	L	USCAR	M-14464-A8	Black
M-9593-MU32	32 lbs./hr.	11-12 ohms	M	USCAR	M-14464-A8	Black w/red stripe
M-9593-LU34K	34 lbs./hr.	11-18 ohms	L	Jetronic/Minitimer	INCLUDED	Black
M-9593-LU34A	34 lbs./hr.	11-18 ohms	L	USCAR	M-14464-A8	Black
M-9593-M39	39 lbs/hr.	11-18 ohms	L	USCAR	M-14464-A8	Dark Blue
M-9593-G302	47 lbs/hr.	11-18 ohms	M	USCAR	M-14464-A8	Black w/yellow stripe
M-9593-LU47	47 lbs/hr.	11-18 ohms	L	USCAR	M-14464-A8	Black w/silver tip
M-9593-LU60	60 lbs/hr.	11-12 ohms	L	USCAR	M-14464-A8	Black
M-9593-LU80	80 lbs/hr.	11-12 ohms	L	USCAR	M-14464-A8	Black w/blue tip
M-9593-MU52	52 lbs/hr.	11-18 ohms	M	USCAR	M-14464-A8	Black



All injector flow rates are quoted at a delta pressure of 39.15 psi. To convert to a delta pressure of 43.5 psi, multiply flow rate by 1.054.
