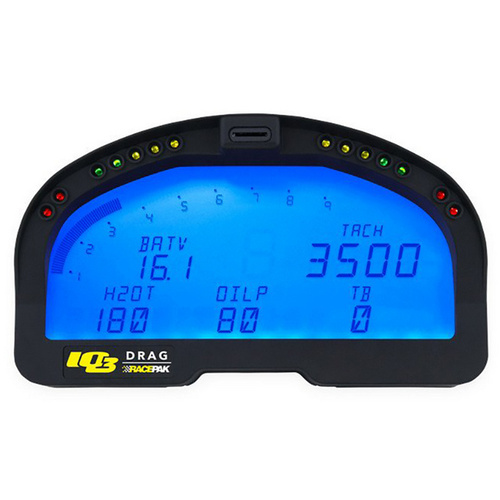

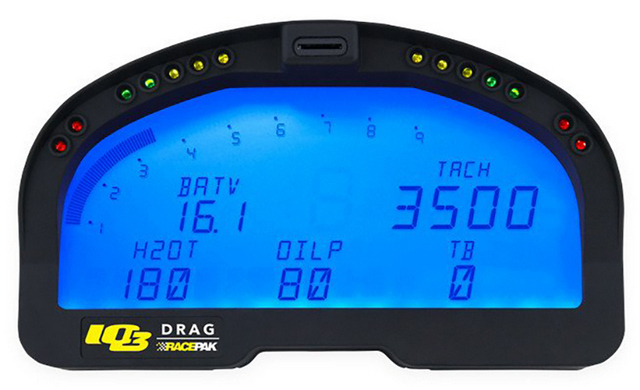

IQ3 Drag Logger Dash

The IQ3D is designed for the sportsman drag racer looking for a compact, all-in-one solution. It combines the look and feel of our popular IQ3 dash with a robust, built-in data logger. Information is displayed on four user-definable pages and recorded data is stored on a microSD memory card located on the face of the dash for easy access.

WHAT'S IN THE BOX:

• IQ3D Dash
• Wiring harness (includes 2 programming buttons)
• Driveshaft Sensor
• Oil Pressure Sensor
• Water Temperature Sensor
• USB programming cable
• Racepak Datalink II software
• MicroSD card & reader

Please note: Drive Shaft collar sold separatel

Specifications

• Records Engine and Driveshaft RPM, Oil PSI, Water Temperature, Battery Voltage and 12v Event
• Displays up to 28 inputs via 4 pages
• Blue dimmable backlight
• Four user defined alarms
• User defined 5 character sensor input names
• Programmable shift light output for up to six shift points
• Shielded, low luster display for sunlight viewing
• Six additional V-Net channels available (2 and 4 channel upgrades available, up to 18 channels)
• Connects to over 20 aftermarket EFI products including Holley, FAST, Big Stuff 3 and more
• Shock travel upgrade package available
