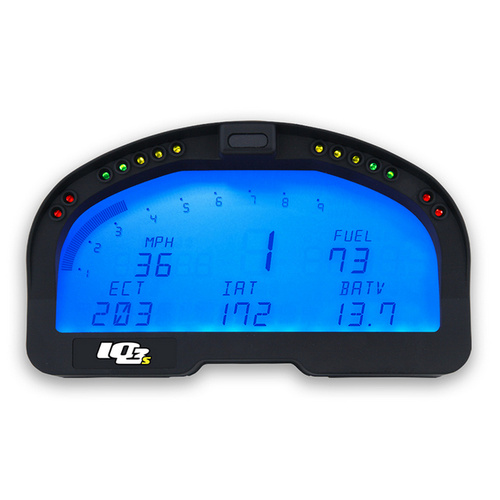

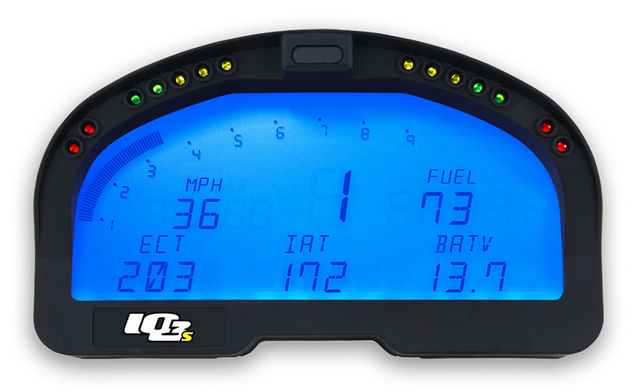

IQ3 Street Dash Display

The IQ3s is a complete dash cluster replacement, providing all standard road functions in a compact, simple to use unit. Standard data, such as speed, odometer, turn signals, hi/low beam and parking brake indicators are displayed, along with programmable shift and warning lights. It is an ideal complete instrumentation package for vehicles with modern engine swaps or aftermarket EFI systems.

WHAT'S IN THE BOX:

• IQ3s Dash
• Wiring harness (includes 2 programming buttons)
• 1 - Oil Pressure Sensor
• 2 - Fluid Temperature Sensors (Coolant & Transmission)
• USB programming cable
• Racepak Datalink II software

Specifications

• Display standard road functions
• User defined shift light output
• Display up to 28 inputs via 4 page
• Shielded, low luster display for sunlight viewing
• Blue dimmable backlight
• Metric and English capable
• Gear Indicator
• CAN-based and OBD2 compatible (adapter cables available)
• Four user defined alarms
• Connect to any Racepak V-Net data logger
• User defined 5 character sensor input names
• Optional GPS module for speed
