Launcher Progressive Nitrous Controller with LCD Touch Screen

Launcher Progressive Nitrous Controller
with LCD Touch Screen

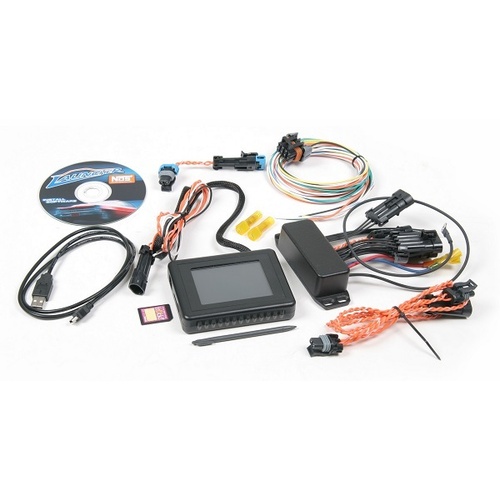

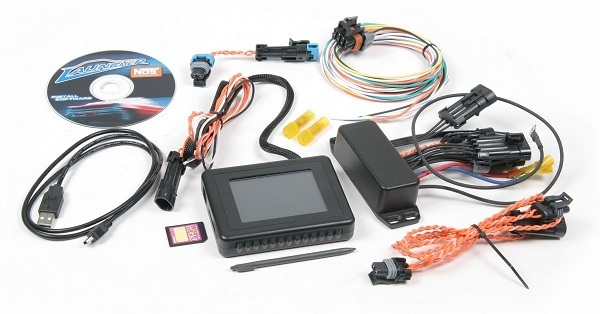

Nitrous Oxide Systems is proud to present the Launcher. It combines all the functions a nitrous racer could ever want into a single, easy–to–use controller. This handy device can be programmed to independently control up to 4 stages of nitrous from a laptop computer or via an available full color 3.5” LCD touch–screen. Easy to use graphical software makes the Launcher a breeze to program. The launcher is available in 3 basic configurations. It is available as the launcher controller only; the Launcher controller with 3.5” color LCD touch–screen (Includes stylus and mini SD card for data–logging); or the Launcher controller with the handheld tuner for data–logging and quick changes in the staging lanes.

Features:

• Fully Programmable via laptop
• Compatible with Windows 2000, ME, XP, and Vista
• NEW innovative NOSbus 2-wire network interface for seaml ess er Holley/NOS supported products
• Easy to use graphical software
• Free software and firmware updates updatable by the user, downloadable off i-net
• Available with a Handheld controller with SD card slot and USB interface for quick changes in the staging lanes and data-logging without laptop in the vehicle
• Available with a 3.5" Color, touch screen LCD for the ultimate in programming and looks. (No laptop Required)
• 3.5" Color, touch screen LCD also features a SD card slot for saving configuration files and data-logging as well as a USB interface
• Full data-logging capability for easy reviewing of past runs through laptop, handheld controller (SD card) or LCD touch screen (SD card)
• Ability to save configuration files for easy set-up at different tracks or for weather conditions
• Handheld controller or LCD touch screen allows changes in the staging lanes without laptop
• Fully programmable 2 stages of nitrous contr ol and with the controller you can add two more stages for a total of 4 fully programmable stages of nitrous control
• Can be programmed to add or take away nitrous at any point to compensate for track or weather conditions
• ntegrated TPS for use on fuel injected or drive by wire vehicles without the need of a separate WOT switch
• Two programmable activation inputs
• Activation of nitrous can be provided from a power input, ground input, or a Falling or Rising TPS signal
• Features an internal MAP sensor for nitrous ramps based on boost PSI
• Solenoid control channels with a load capacity of 40 amps for use with large solenoids
• 1st gear lockout to prevent the nitrous from being triggered until the RPM cutoff has been hit the first time
• Two 1 amp general purpose outputs for timing retards, purge, or any activation switch (two additional on the optional slave controller)
• Use WBO2 controller P/N 15979 for rich or lean nitrous cut off. Requires rs P/N 534-198 Bosch or P/N 534-194 NTK (NTK requires a 534-199 extension harness)
• Customer has the option to enable lean and/or rich nitrous cutoff with a programmable delay time up to 1 second. Richest/Leanest AFR data is also logged along with the nitrous data for advanced analysis
• Pause Enable Option - when retriggered, (pedaling event) the ramp will continue where it left off (rather than starting over from scratch)
• Nitrous pressure sensor input for data-logging
