SKU: POR-IRK-04

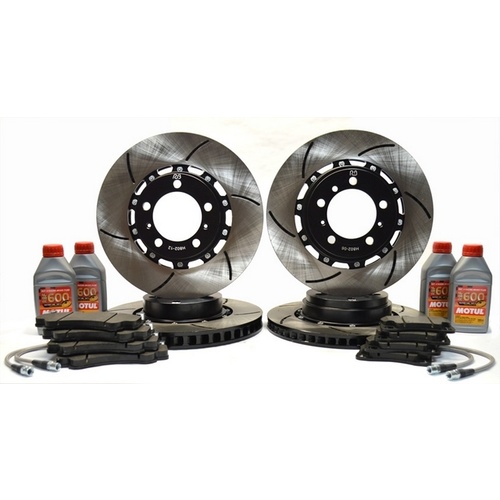

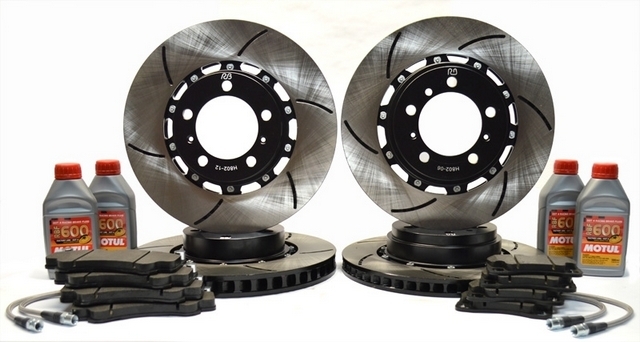

Racing Brake Cast Iron Rotor Set Porsche 997 GT3 Cup 380mm / 350mm

(P/N 2338 & 2180)

$4,895.00
RRP $5,495.00
SAVE $600.00 (11%)
In Stock


Calculate Shipping

Description

This kit includes:


Customer Reviews:

GTR customer - http://www.gtrheritage.com/topic/2455-endless-e-slit-rotors/?p=33147
Corvette ZR1 customer - http://www.corvetteforum.com/forums/c6-z06-discussion/3463081-rb-xr70-brake-pads-test-review.html#post1586813240


Material: Racing Formula Alloyed Gray Iron & Heat treated
Finish: Open Slot
Surface Treatment: EDP Coating w/cross cut fine grinding on brake pad contact area

Replacement Components
Front rotor ring: D501-08-381
Rear rotor ring: D401-08-381


Rotor Design:

Our unique and patented rotor designs make our discs cooler and last longer.

  1. Convergent vane design

    The cooling vanes are of a convergent nozzle design, which increases airflow and turbulence and makes discs cooler. (Illustration #1)








  2. Center-mount design

    The center-mount flanges for hat mounting to the rotor ring have several benefits. (Illustration #2)
    • It allows the ring to be used on either side of the vehicle simply by mounting the hat on either side of the ring (unidirectional).
    • The stress load transferred from the ring to the hat is balanced.
    • Air inlets are widely open to both inboard and outboard sides of the rotor. More air suctions and even temperature on both sides of the disc surface.
    • Heat transfer from the disc surfaces to the hat is even and minimized by increasing the flange length and the airflow around the flanges.
    • Mounting flanges are on both friction surfaces ultimately provides excellent heat balance.
  3. True floating design

    Exclusive full floating design with 10.9 grade alloyed hardware. Hardware is DACRO coated and crimp locking. DACRO is highly corrosion resistant and provides a film for easier movement between the hat and rotor ring as disc expands and contracts and the crimp design provides positive engagement without rattling or torque loss at temperature.

  4. Iron sleeve insert
RB aluminum rotors hats are constructed of aluminum with an iron sleeve insert. This allows for significant weight savings while still preserving the use of the stock emergency brake. This design is only available through RB.


All kits are made to order. Allow up to 21days delivery.



Specifications

SKU POR-IRK-04
Brand Racing Brake
Shipping Weight 50.0000kg
