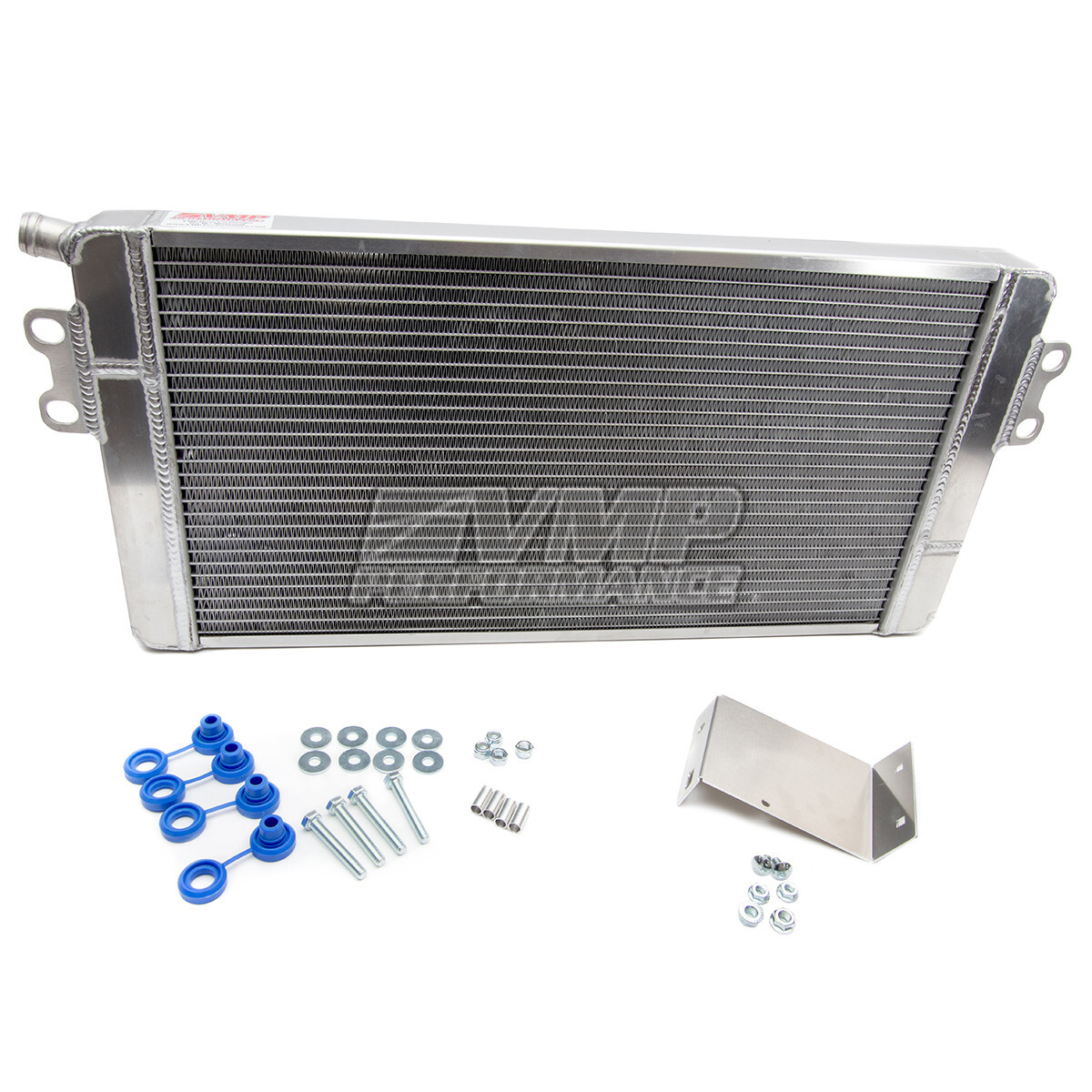

VMP non-fan triple-pass heat exchanger with 1" in-out

This version of the VMP triple pass heat exchanger has full 1 inch inlet and outlet fittings welded to it in place of the regular 3/4" fittings.

Does not include fans or wiring.

•
• Extra cooling capacity
• Increases horsepower
• Triple pass design
• Made in the USA
• All aluminum construction with hand TIG welding
• Fits 2005-2019 Mustang with included hardware
• Fits 2011-2019 F-150 with brackets (available separately)
• Bolt-on installation
• Additional plug and play wiring harness needed for installation (can be purchased separately)
• Core area measures 24" wide x 13" tall x 1 1/2" thick
• 1" inlet/outlet

Need extra cooling power for your Mustang or F-150? The VMP Triple Pass Heat Exchanger features state of the art triple pass technology - where the water makes three passes through the core. This special technology keeps temperatures low, decreases heat soak, and helps eliminate overheating.

Made in the USA of 100% aluminum, the VMP Triple Pass Heat Exchanger is light weight and durable. TIG welded at all the fittings, the VMP Triple Pass Heat Exchanger is strong and leak proof.

For measurement including end-tanks add 4" to width (brackets not included). Add 1/2" to thickness and height.

*Fan and wiring kit available, or purchase one of our VMP dual-fan triple pass heat exchanger kits.


Includes: (1) VMP Triple Pass Heat Exchanger with 1" inlet/outlet,  mounting hardware, (1) Z-bracket
