Description

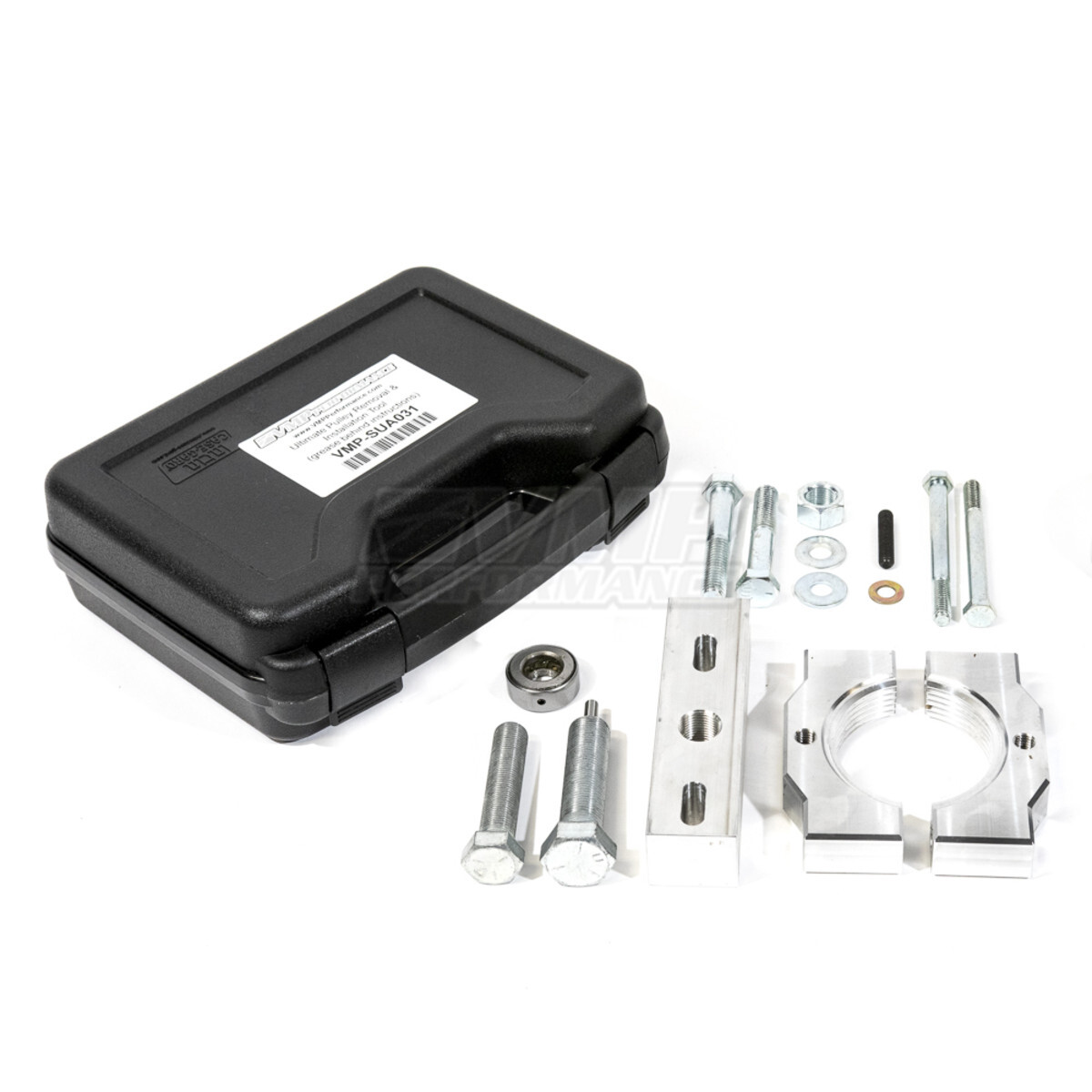

VMP Ultimate pulley puller and installer tool for Shelby GT500, comes in a hardsided foam-lined case.

Our tool utilizes fine thread bolts, bearings, and a supplied grease pack which makes using our tool a breeze. Less expensive tools that use course thread bolts and no bearing can make a pulley removal and installation 10 times harder, our tool avoids these headaches due to it's proper design.

Our puller is different from most on the market, it grabs the pulley by the ribs, and leaves no marks. Our tool includes a precision machined aluminum clamshell that clamps onto the pulley and grabs it by the ribs. This prevents damage and applies equal pulling force all the way around the pulley, for easy damage-free removal.

*For 2013 we updated our tool with a beefier clamshell and 1/2" bolts, a stronger bar, and seperate fine-thread bolts for installation and removal.

Parts List: Qty: Usage:

HD Clamshell Set	2	Clamps onto pulley
1/2-13 bolts x 3	2	Holds clamshell together
3/8-16 bolts x 4	2	Holds clamshell to square bar
3/8 washers	2	For use on long bolts in bar
Square bar	1	Used for pulley removal only
3/4-16 bolt with nub	1	Used for removal ONLY
5/8-18 bolt with tapped hole	1	Used for installation ONLY
M8 x 40 full thread screw	1	Used for installation of pulley
Large 5/8 D-3 bearing	1	Used for installation of pulley
Small washers	1	Used for removal of pulley
5/8-18 nut	1	Used for installation of pulley
Grease Packet	1	For big bolt threads, nut, & washer
