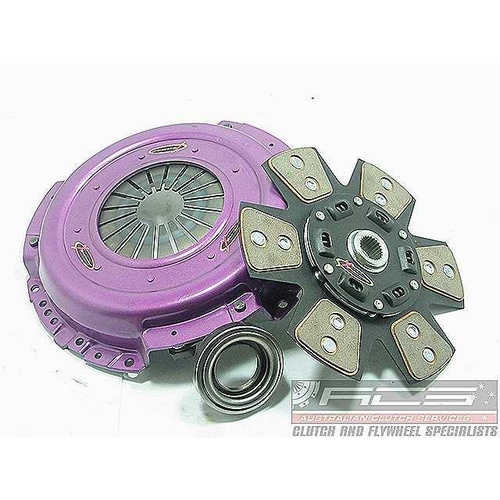

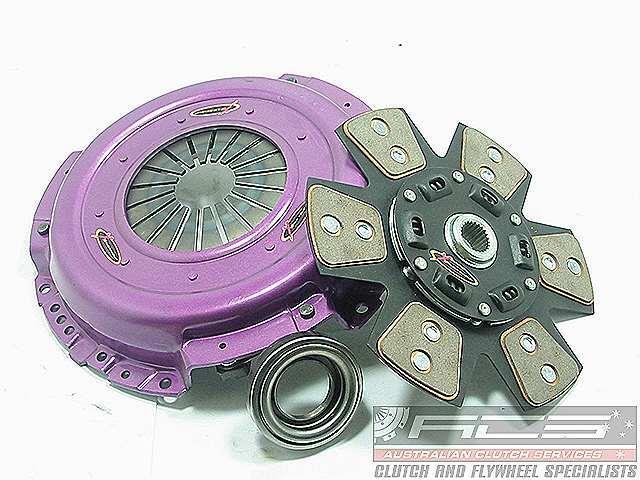

Xtreme Heavy Duty Sprung Ceramic Clutch Kit (KGM26006-1B)

Clamp Load: 800Kg (20% inc.)
Torque (Nm):
Flywheel Step: 0
Clutch Disc Diameter (mm): 255
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.5
Weight (kg): 9

The Stage 2 clutch uses an upgraded pressure plate combined with a ceramic friction disc in sprung configurations. The stage two clutch range is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily driven vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle. They use a ceramic “paddle” friction disc which can result in more noise and harsher engagement.
