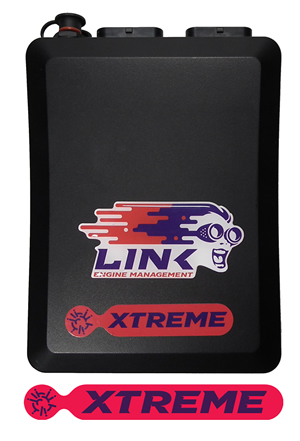

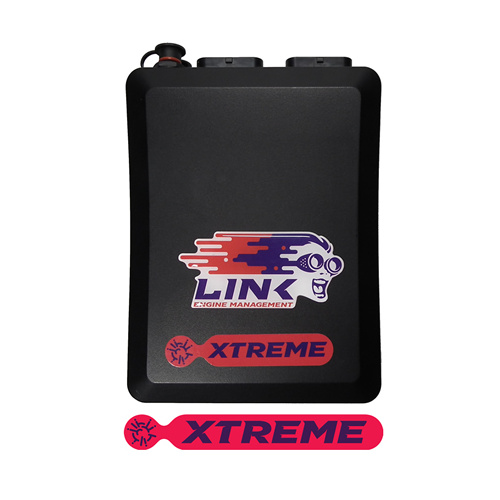

G4+ XTREME ECU

The Xtreme is one of Link’s premium ECU’s with more inputs and outputs, Peak and Hold Injection, built in E-throttle and all the motorsport features including Anti-lag and Traction Control.

The Xtreme is optimised for all engines including V8s, 4 Rotors and turbos. If you want to gain an advantage over the competition, you’ll want a premium ECU like the Xtreme.

SPEC OVERVIEW:

Inputs

·         8/10* x Digital inputs

·         4 x Temperature inputs

·         11 x Analog inputs

·         2 x Trigger inputs

·         2 x Knock inputs

*2 inputs required when using 2nd CAN Bus

Outputs

·         8 x Injection drives

·         8 x Ignition drivers

·         10 x Auxiliary outputs

·         +5V Sensor power supply

·         +8V Sensor power supply

Communications

·         2 x Thirty four pin, waterproof connectors

·         1 x CAN bus

·         1x Serial (RS232) connection

·         1x USB tuning connection

Misc.

·         8 Peak and Hold injection drives, user definable,

·         10 amp peak, 3 amp hold.

·         Fully programmable E-throttle control complete

·         with gear shift control and throttle blips.

·         CAN is user defined and supports two independent CAN modules

·         Onboard Knock Control – support for two knock sensors wired

·         directly to the ECU. No external amplifier required.

·         30 General Purpose Tables and many dedicated tables.

·         100 channels of logging.

·         32Mb (4 MByte) of logging memory.

·         Built in trigger oscilloscope.

·         Mixture map, closed loop fuel correction.

·         OBDII output stream – send engine data to your tablet or phone using an OBDII to wifi/bluetooth adaptor (not included).
