G4+ ATOM II

G4+ ATOM II

Link are redefining what an entry level ECU should be.

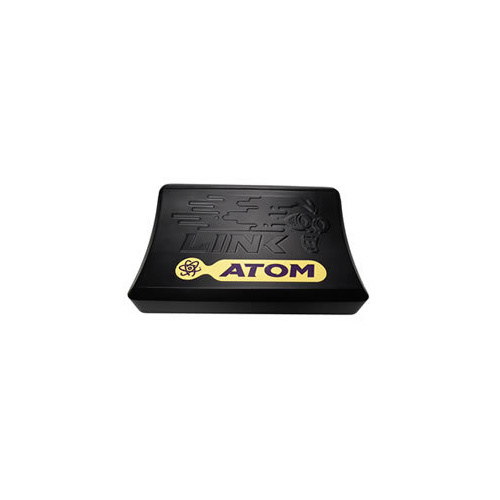

The Atom now comes in a brand new enclosure, beautifully crafted from glass filled nylon.
The stylish new enclosure is designed to IP67 standards, making it dust and waterproof.

Running on the proven Link G4+ platform and being completely waterproof,
Link are redefining what an entry level ECU should be.

The Atom is ideal for naturally aspirated engines with 4 cylinders or less that just need a repower
and don’t need all the extra sensors and features that come with our higher level ECUs.

SPEC OVERVIEW:

Input

·         2 x Digital inputs

·         2 x Temperature inputs

·         3 x Analog inputs

·         2 x Trigger inputs

Outputs

·         4 x Injection drives

·         4 x Ignition drivers

·         4 x Auxiliary outputs*

·         +5V Sensor power supply

* unused ignition drives can also be used as auxiliary outputs

Communications

·         1x CAN bus

·         1 x thirty four pin, waterproof connectors

·         1x USB tuning connection

Misc.

·         Onboard barometric pressure sensor

·         32Mb (4 MByte) of logging memory

·         20 general purpose tables

·         Runs on PC Link software
