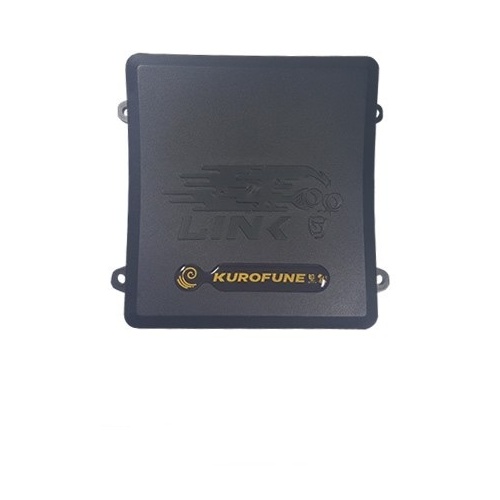

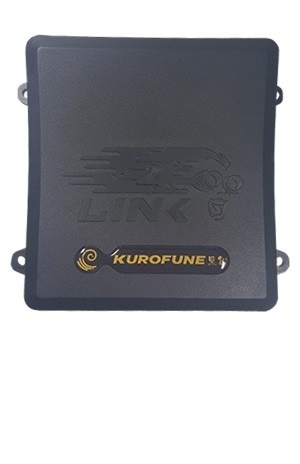

G4+ KUROFUNE ECU

The Kurofune is Link’s first G4+ ECU built to run off adapter looms.

Meaning there is already a host of aftermarket adapter looms for all types of Japanese cars that will plug straight into your car and straight into the Kurofune.

This also means that the Kurofune is a ready made replacement for other aftermarket ECUs that share that same wiring set-up.

SPEC OVERVIEW:

Inputs

·         10 x Digital Inputs

·         3 x Temperature Inputs

·         9 x Analog Inputs

·         2 x Differential Trigger Inputs

·         2 x Knock Inputs

Outputs

·         8 x Injection Drives

·         8 x Ignition Drivers

·         10 x Auxiliary Outputs

·         4 Analog Outputs

·         +5V Sensor Power Supply

Connectors

·         1 x Sixty Four Pin Connector

·         1 x CAN Bus

·         1x USB Mini Tuning Connection

Misc.

·         30 General Purpose Tables and many dedicated tables.

·         100 channels of logging.

·         32Mb of logging memory.

·         All Motorsport features including antilag, traction and launch control

·         Built in trigger oscilloscope.

·         Onboard Knock Control – support for two knock sensors wired directly to the ECU. No external amplifier required.

·         QuickTune – automated fuel tuning.

·         OBDII output stream – send engine data to your tablet or phone using an OBDII to wifi/bluetooth adaptor (not included).

·         Up to 6D fuel and ignition mapping.

·         5D boost control with three switchable tables.

·         Real time selectable dual fuel, ignition and boost maps.

·         Individual cylinder correction.
