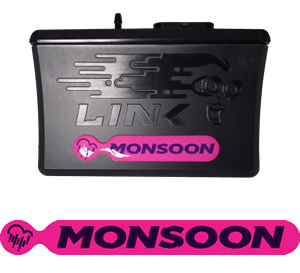

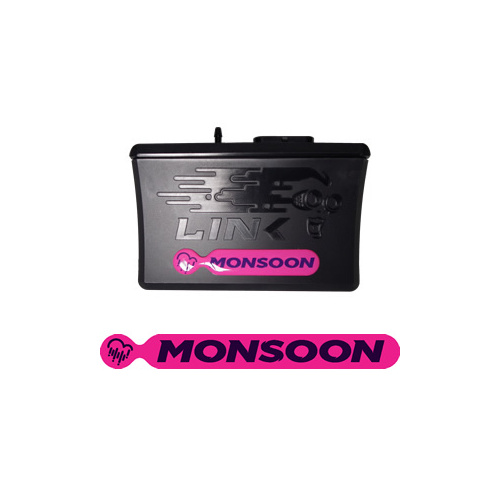

Monsoon ECU

If you like the value of the Atom, but are looking for a couple of extra features, then the Monsoon is the ECU for you.

With the Monsoon you have all the repower capabilities of the Atom, but you can also choose to run some of the following features: Gearshift Control, Launch Control, Anti-lag, VVT Control and Closed Loop Boost Control.

Note: The Monsoon will run any of the above features, but it cannot run them all at once. The amount of features you can run is dependent on how many of the limited Inputs and Outputs each feature needs.

The Monsoon is ideal for engines with 4 cylinders or less that just need a repower and one or two features, so you don’t need to make the jump up to one of our higher level ECUs.

SPEC OVERVIEW:

Inputs

·         4 x Digital Inputs

·         2 x Temperature Inputs

·         4 x Analog Inputs

·         2 x Trigger Inputs

Outputs

·         4 x Injector Drivers

·         4 x Ignition Drivers

·         6 x Auxiliary Outputs*

·         +5V Sensor Power Supply

* unused ignition drives can also be used as auxiliary outputs
The Monsoon comes supplied with waterproof connectors, a mounting bracket and a USB tuning cable.

Communications

·         1x CAN bus

·         1 x thirty four pin, waterproof connectors

·         1x USB tuning connection

Misc.

·         Onboard 4 Bar MAP sensor

·         32Mb of logging memory

·         20 general purpose tables

·         Runs on PC Link software
